In some cases, you may want to lock the user interface to prevent users from changing the configuration.
To access the Symphony Client Settings dialog box:
1. From the View menu, select Settings. The Symphony Client Settings dialog box opens.

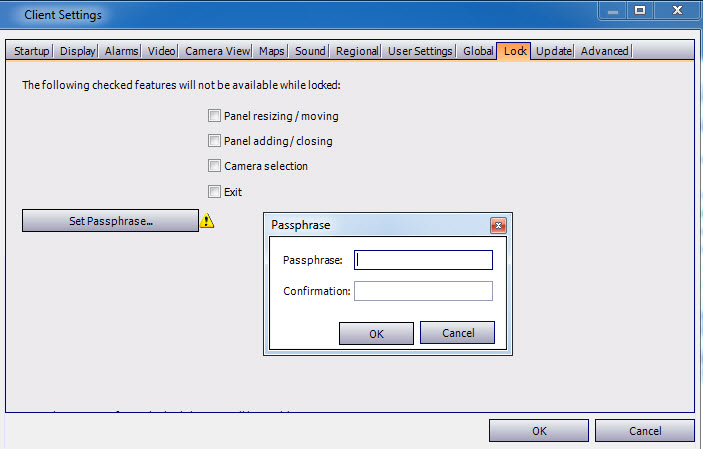

2. Click the Lock tab.
• Panel resizing/moving - Prohibits user changing size of panels as well as moving and docking the panels.
• Panel adding/closing - Prohibits user adding panels to the user interface or closing them in the current layout.
• Camera selection - Prohibits user changing camera in the view through the camera tree or through the map.
• Exit Symphony - Prohibits user from exiting Symphony.
• Set Passphrase button - Creates a password to lock/unlock the interface. The user will be prompted for a password.
To lock the user interface:
1. In the Lock tab of the Symphony Client Settings dialog box, select the interface features you want to lock.
2. Click the Set Passphrase button. Enter a pass phrase that the user must enter (if necessary) to later unlock the interface and lick OK.
3. From the View menu of the Main Console, select Lock.
To unlock the Symphony Client:
1. From the View menu on the Main Console, select Unlock. The Unlock Symphony dialog box opens.
2. Enter the pass phrase that was defined when locking the interface and click OK. The interface is now unlocked.
