The following example specifies the E-O-L-Table-0 for a "normally closed" 1K/2K circuit:

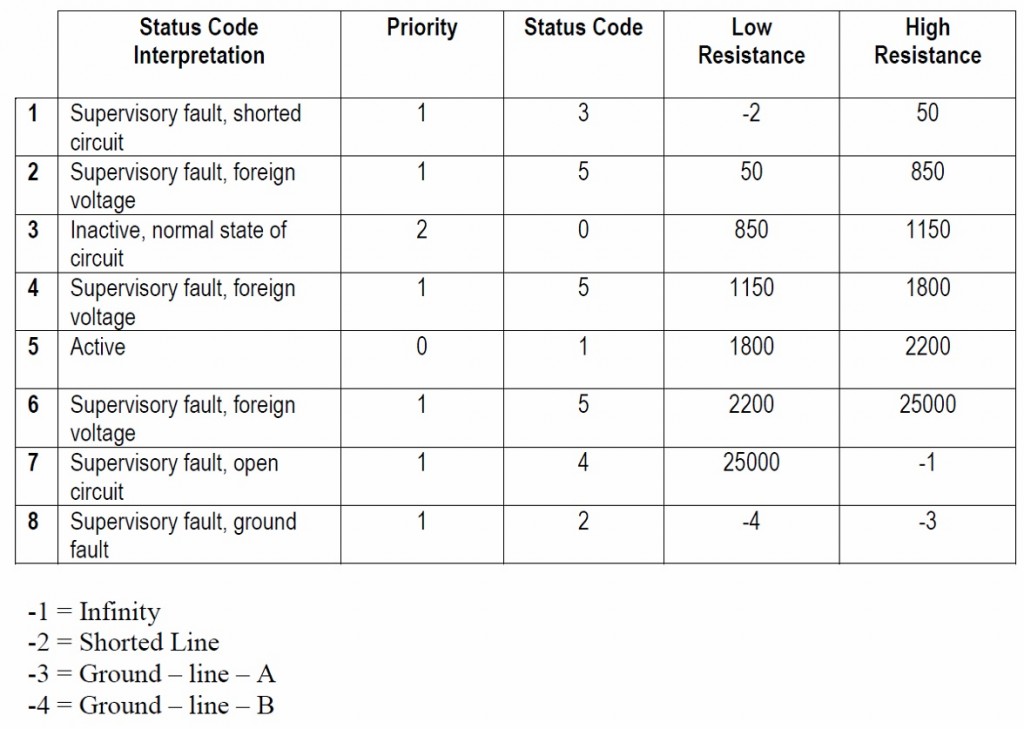

input_scanner_table
Up to 4 different custom resistor tables can be configured in the Data\Drivers\12000.ini file.  Below is an example of how to configure the first table for a "normally closed" 1K/2K scenario:

[Input_Conversion_Table_128] Description=Test 1=1 3 -2 50 2=1 5 50 850 3=2 0 850 1150 4=1 5 1150 1800 5=0 1 1800 2200 6=1 5 2200 25000 7=1 4 25000 -1 8=1 2 -4 -3

[Input_Conversion_Table_129] [Input_Conversion_Table_130] [Input_Conversion_Table_131]

Note: When defining resistance values, resistance values must be between 500 Ohms and 10,000 Ohms. If the resistance values are outside of that range, contact the factory. Incorrect values can result in excessive fault reports.
