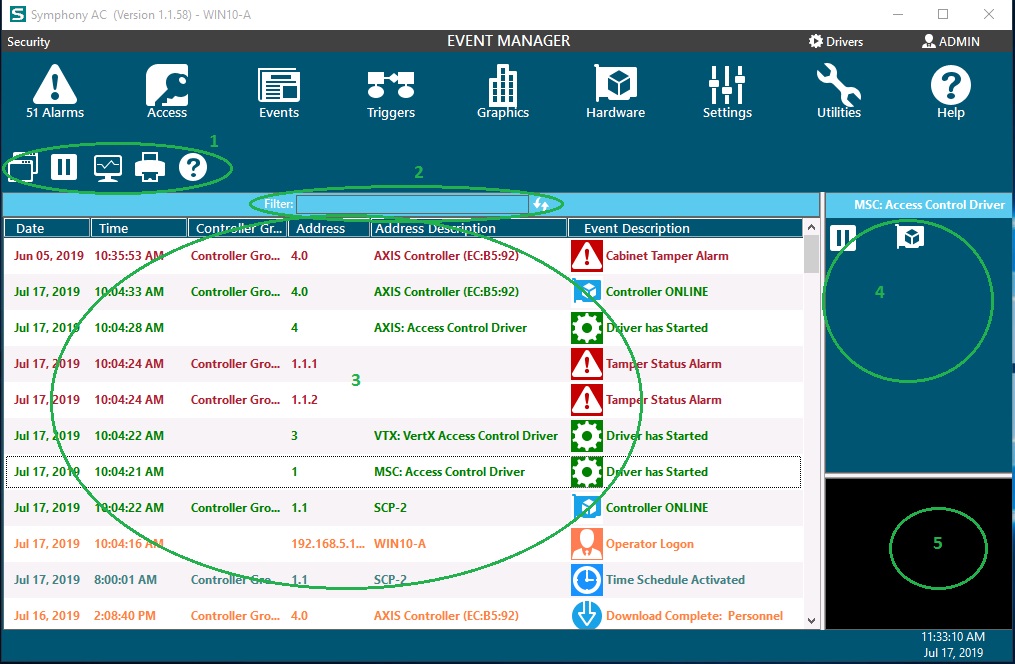

The Command Toolbar icons for Event Manager are explained as follow (from left to right): a. click the first icon will release Event Manager into it's own floating window/module. b. click the second icon will pause Event Manager from displaying real-time events c. click the third icon to launch the Point Status module d. click on the fourth icon to launch Histor- Events reporting module e. click on the firth icon to launch the modules Help documentation
In the Filter box, you can enter text/numbers to filter the entire Event Manager based on information from the following fields: Address, Address Description, Event Description, Name and Data columns. Clearing the values in the filter box will return Event Manager to its normal operations
This is the main information window of Event Manager. It will display real-time events as they come in, with newest events appearing at the top. You can also re-sort (move) the data columns by dragging them to the desired location
Depending on the type of event, the section allows you to click on a shortcut to a module
This window box will display a live video feed from an integrated camera when that camera has been linked to a device, such as a reader/door/input/output. The link is created in the Video Link property of that device in Hardware Manager
