The Camera Tree is the default method of navigating between cameras. By default, all cameras are listed in order of camera ID. Each camera has a unique ID and is set automatically by the system as cameras are added. If the camera tree is not visible, from Symphony Client click View > Camera Tree.
The Camera Tree can be docked to the Main Console, or undocked and put to any monitor. To customize the Camera Tree, click Design.

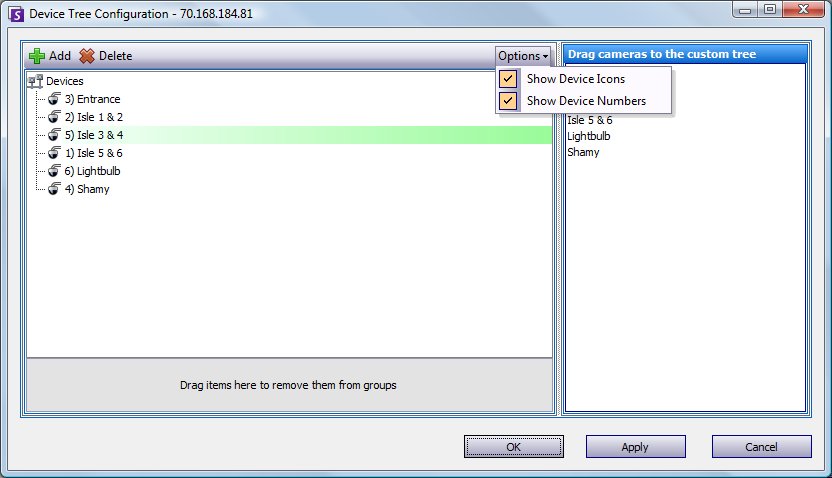

The Camera Tree Configuration interface opens.
Usage
|
Drag cameras to the custom tree |
These cameras can be dragged and dropped in the tree structure |
|
Show Device Icons |
This will enable or disable device icons in the tree |
|
Show Device Numbers |
Will enable or disable camera IDs |
|
Add |
Will add a folder to the camera tree |
|
Delete |
Delete the current select object, either a camera or folder |
The Device tree can be automatically generated and maintained
from an external source. In this scenario, Symphony needs to query the
source for changes in the camera tree structure. Define
the time interval to query the source in the Device
Tree Synchronization combo box found in General Settings.
