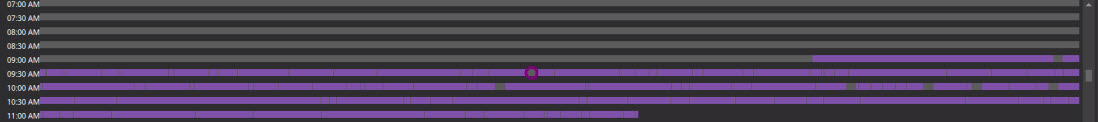

1. Click the Timeline button or right-click on the video panel and select Show Timeline.
2. If you click anywhere on the Timeline, a still image for that time will appear in the main view.
Color |
Issue |
Notes |
Orange-Red |
Alarm |
Set by default, but customized in Alarms tab of Client Settings. |
Dark Purple |
Activity |
|
Teal |
Video download from camera (edge storage) |
Indicates that video was not recorded locally, but Symphony is already downloading the video from an AXIS camera. Symphony does not analyze video downloaded from the camera. As such, it does not determine activity type, for example, broken rule or video signal lost. |
Black |
Access Denied |
|
White |
Access Granted |
|
Red |
Access Other |
|
Dark Grey |
No Activity |
|
Black |
No Signal |
|
Transparent |
No Record |
|
Light Purple |
Zoom |
|
Purple Circle |
Timeline position |
Current view in the Video Panel. |
You can synchronize the timelines for up to four video panels. When synchronized, navigating to a location on a timeline for a video panel will move the other video panels to the same time.
If you play video and another camera does not have footage for that time, the camera displays a blank screen with a "no footage found" message or a still image from the last video footage it played.
1. In the Symphony client interface, display up to four video panels.
2. To display timelines, click Timeline.
3. Click the Lock Times On Navigation icon.
