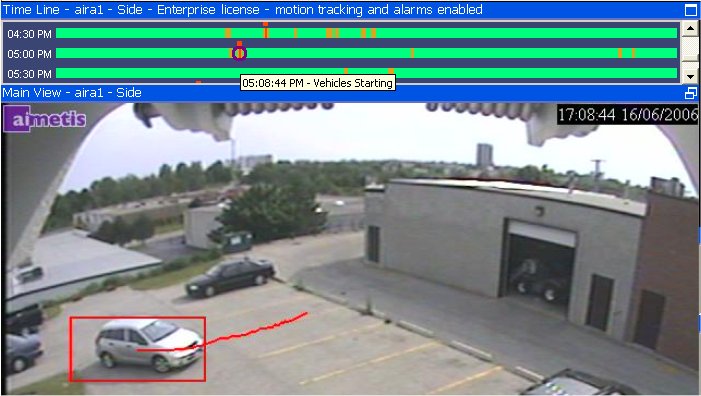

If you click anywhere on the Time Line, the image for that time will appear in the main view.
Time Line is a powerful way to view everything that has happened in a day at a glance. The Time Line is integrated in the main view of AIRA Explorer.
If you click anywhere on the Time Line,
the image for that time will appear in the main view.
Meaning of the bar colors:
Green - No relevant foreground activity was detected.
Yellow - There is activity (ignores weather conditions and shadows).
Red - A policy was broken that resulted in an alarm being raised.
The purple circle always indicates the Time
Line position for what is currently being viewed in the live view.
By default, policies are summarized
on the Time Line using a red square. You can customize how policies are
displayed on the Time Line from the Time Line tab in the Settings
dialog.
