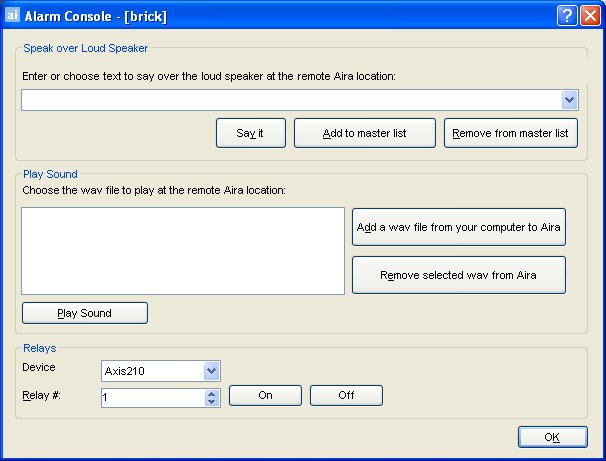

Alarm Console

Speak over Loud Speaker

In the Speak over Loud Speaker section, users can type in text which will be played at the remote location. The master list is a text file that contains different spoken strings, and it appears in the "This is private property." combo box above.  It is client-side meaning it is located where AIRA Explorer is installed.  This means that if you have multiple people connecting to the AIRA server from different locations they will each have their own list of things that they can say.

Say it

After typing new text in the Speak over Loud Speaker combo box, or select existing strings from the combo box, click Say it to play the text at the remote location. AIRA converts the text string into voice at the remote site.

Add to master list

You can add text to the master list which will be available as an option in he Speak over Loud Speaker combo box for future use.

Remove from master list

You can remove stored text from the master list.

Choose the wav file to play at the remote Aira location:

In the Play Sound Section, you can select a sound file to be played at the remote location. Highlight the sound you wish to play and click Play Sound.

Play Sound

Will play the sound you have selected in the Play Sound dialog.

Add a wav file from your computer to Aira

Click here to upload to the AIRA Server another sound file for future use.

Remove selected wav from Aira

Click here to delete a sound file off the AIRA Server.

Relays

It may be useful to manually turn on or off a relay. A siren or other audible alarm can be connected to Relay inputs or outputs, or doors could be opened or closed by triggering a relay. For more information on Relays (or digital I/Os, visit Device Setup).
